Non-Glue Protective/Masking
Compostable
Non-Glue Protective/Masking

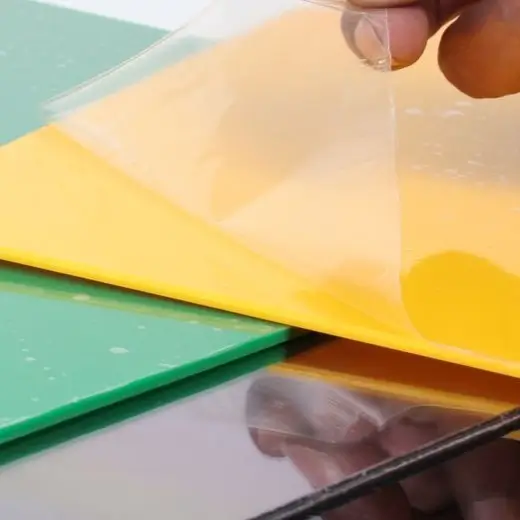

The non-glue Greendot's Masking/Protective Films are made to shield surfaces from dust, abrasion, and scratches whether in transportation or storage. They are designed films in which the adhesive system and the film are extruded simultaneously. Greendot's is a specially designed product with adjustable width, thickness, and adhesion that is offered to protect surfaces during substrate manufacture, storage, or shipping.
Non-Glue Protective/Masking characteristics
Zero Damage
prevents any harm to the substrate coating and protected surface.
Easily Removeable and Sealable
smoothly comes on and off of protected substrate.
100% Recyclable & Eco-Friendly
Polyethylene is easily recycled, without releasing any harmful substances into the environment.
Puncture- and Tear-resistant
Maximum security is provided by high rip resistance around jagged edges and corners, as well as during substrate machining and film removal.
Wrinkle-Free
The product maintains its uniform coverage on the masked surface and is free of creases and wrinkles.
Leaves No Traces
After the film is removed, there are no signs of glue left behind on the surface that was shielded.
Non-Glue Protective/Masking Specification
| ATTRIBUTE | SI | FPS |
|---|---|---|
| Thickness | 15 To 100 µ | 0.59 To 4 (mil) |
| Width | 100 – 2800 mm | 3.93 – 110.23 in |
| Roll Length | As per requirement | |
| Color | Transparent/Opaque in any color/Tinted color | |
| Printing | 2 Colors | |
| Available cores for film winding | Paper core, Plastic core, Metal core | |
Technical Properties
| Property | SI | FPS | Test Method | |
|---|---|---|---|---|
| Tensile Strength | MD | 14 N/mm² | 2030 psi | ASTM D 882 |
| TD | 10 N/mm² | 1450 psi | ||
| Elongation | MD | 300% | 300% | |
| TD | 500% | 500% | ||
| Tear Strength (Elmendorf) | MD | 150 gm | 0.33 lbf | ASTM D 1922 |
| TD | 500 gm | 1.10 lbf | ||
| Peeling Strength (With film to film adhesion) | 0.049 – 2.45 N/25mm | 0.28 – 14 lbf/inch | 180° peel method | |
Application of Non-Glue Protective/Masking
Plastic Sheet & Molded Components
Glass
White Goods
Metal
Automotive
